Footwear & Wrist Strap Tester | ESD Safety

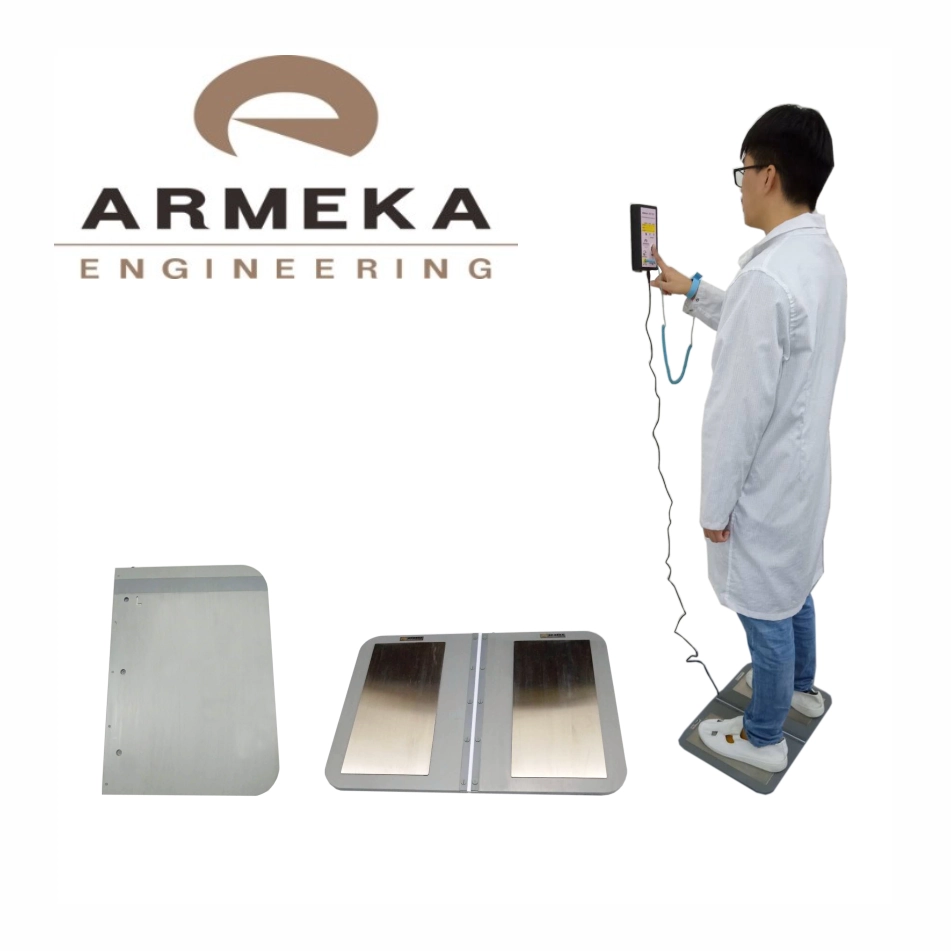

The AE-750 is a reliable, battery-operated device designed by Armeka Engineering Ltd for routine testing of both footwear and wrist straps. This compact and portable tester makes it easy to verify that your static control equipment is functioning correctly, helping you maintain a safe work environment.
Ensure ESD Safety with the AE-750 Footwear & Wrist Strap Tester
The AE-750 is a reliable, battery-operated device designed by Armeka Engineering Ltd for routine testing of both footwear and wrist straps. This compact and portable tester makes it easy to verify that your static control equipment is functioning correctly, helping you maintain a safe work environment.
With its simple, user-friendly interface, you can quickly set the desired resistance values for accurate testing. The clear operational lights provide instant feedback, making it easy to see if the equipment passes or fails.
Key Features & Technical Data
- Dual Testing Capability: Simultaneously tests both footwear and wrist straps.
- Easy-to-Read Indicators: Three distinct LEDs (red for low, green for OK, red for high) provide clear, immediate test results. LOW (red): Less than 750kΩ (non-acceptable), OK (green): Between 750kΩ and 10/100MΩ (acceptable), HIGH (red): Over 10/100MΩ (non-acceptable)
- Compact & Portable: Weighing only 260g, its small size makes it easy to transport and use anywhere.
- Durable Construction: Made from sturdy polystyrene, built to last.
- Long Battery Life: Powered by a standard 9V alkaline battery, providing over 20,000 tests.
- Automatic Low Battery Indicator: A blinking LED lets you know when it's time to replace the battery, ensuring consistent performance.
- High-Quality Footplate: The dual foldable footplate, with a 150 x 350mm stainless steel conductive area, is both durable and easy to store.
