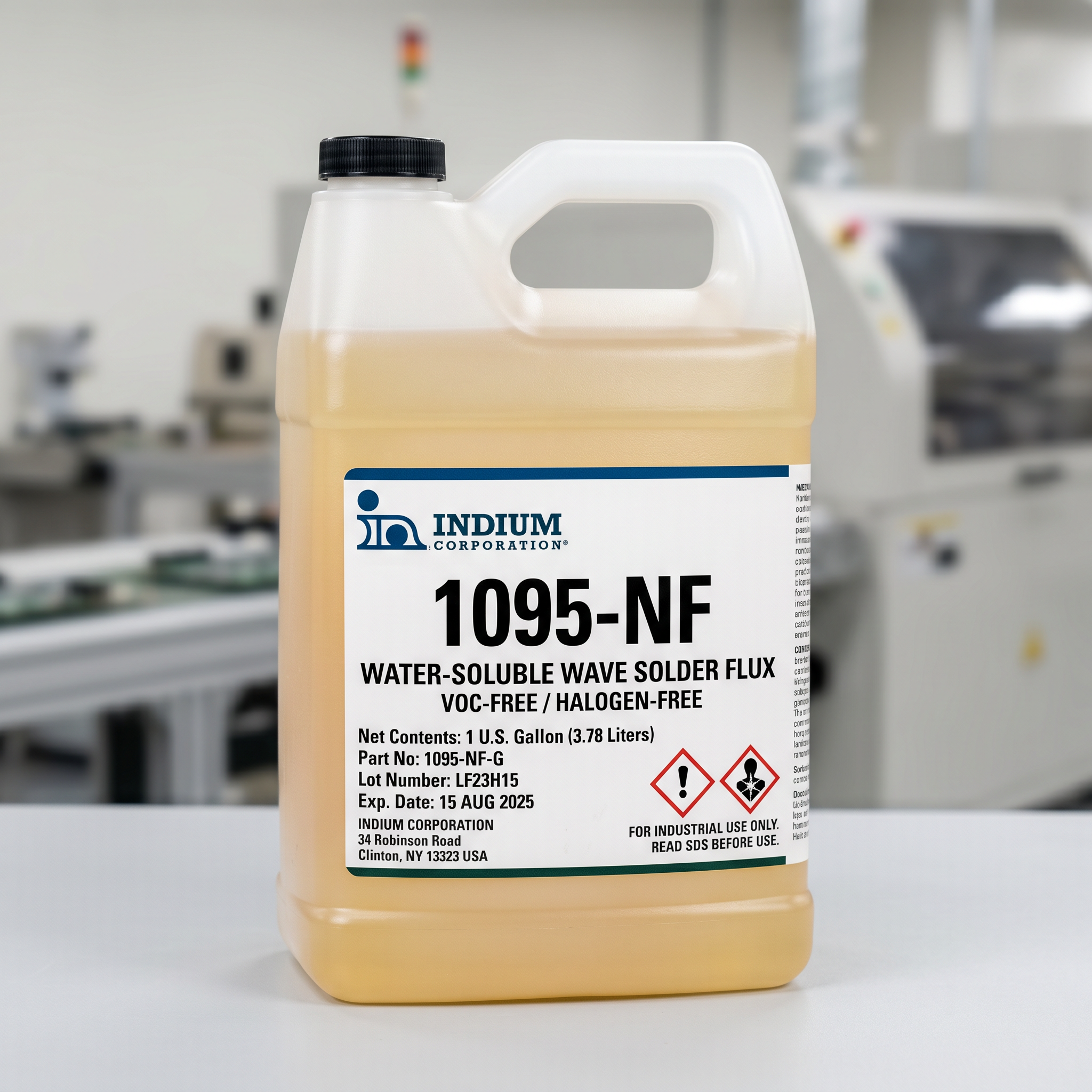

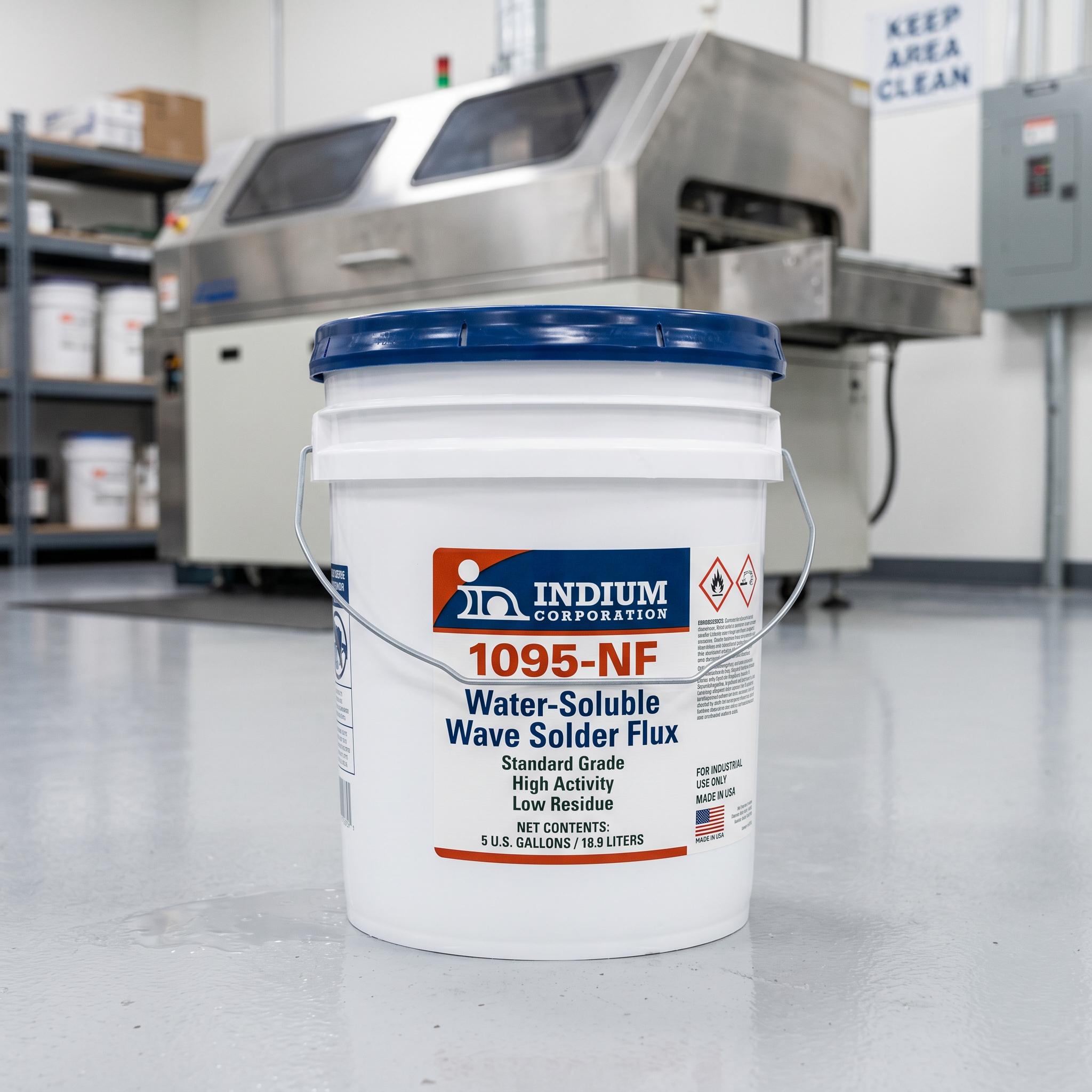

1095-NF Water-Soluble Wave Solder Flux

High-Activity, Biodegradable Flux for Superior Through-Hole and Surface Mount Assembly

Indium 1095-NF is a premium, low-solids, water-soluble wave solder flux engineered to deliver exceptional soldering performance across mixed-technology, surface mount, and through-hole assemblies. Formulated with a neutral pH and a high level of activity, it ensures excellent wetting and highly reliable solder joints.

Designed with the modern manufacturing environment in mind, 1095-NF is completely biodegradable and cleans easily with water to exceptionally low ionic levels, leaving behind an assembly with high surface insulation resistance (SIR). Plus, its flexible processing window allows residues to safely remain on assemblies for up to 48 hours before washing without compromising the cosmetic appearance of your boards.

Key Features & Benefits

Broad Compatibility: Formulated to perform exceptionally well with both traditional SnPb and modern Lead-Free (Pb-free) alloys.

Extended Process Flexibility: Cleaning can be delayed for up to 48 hours post-soldering without cosmetic or structural degradation.

Eco-Friendly & Easy Cleanup: Biodegradable formula washes away readily with standard water cleaning systems to minimal ionic levels.

Versatile Application: Can be seamlessly integrated into your line via spray or foam fluxing systems.

Industry Certified: Manufactured by Indium Corporation, an ISO 9001:2015 registered company operating out of IATF 16949:2016 certified facilities.

Technical Specifications

Flux Type: ORH1 (J-STD-004A)

Solids Content: 19.5%

Specific Gravity: 0.838 @ 25°C (77°F) / 0.844 @ 15.5°C (60°F)

Flash Point: 54°F TCC

Color: Clear to light amber

Shelf Life: 3 years from manufacture (unopened, stored below 32.2°C / 90°F)

Quick Process Guidelines

Application: For foam applications, maintain the aeration stone 1½ to 2 inches below the flux surface, with air pressure at 1–3 psi and air knife pressure at 5 psi.

Density Maintenance: Use Indium 16-1000 Thinner alongside the specific gravity adjustment chart to consistently maintain optimal flux density during extended runs.

Special Component Care: When working with Immersion Silver or Immersion Tin finishes, limit topside flux deposition to minimize potential staining.

Product Data Sheet: 1095-NF Water-Soluble Wave Solder Flux

Please contact us for price and shipping information
